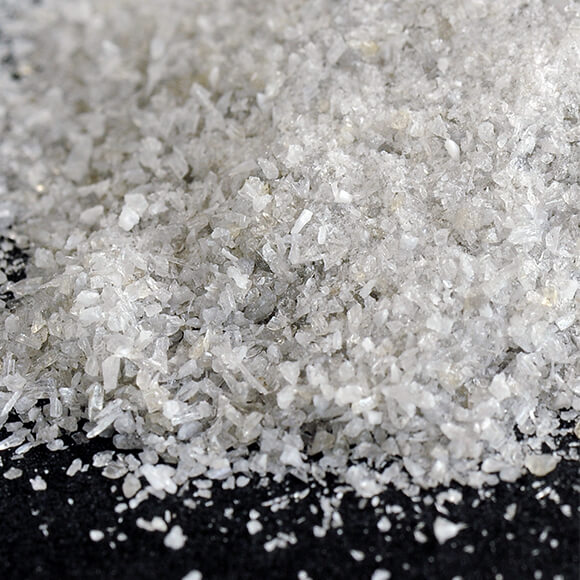

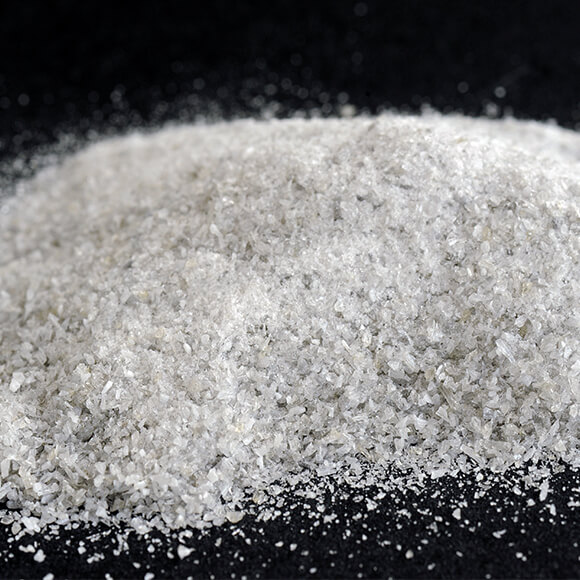

Fused Mullite
Color: White or Grey
Refractoriness: 1830℃
Specific Gravity: 3.15g/cm3 Min
Glass phase Content: 5% max
3AI2O3.2SiO2 Phase: 95%min
Grade: FM-70, FM-60
Grain sizes: 0-1mm, 1-2mm, 1-3mm, 3-5mm…-200mesh, -325mesh.
*Custom Sizes & Chemistry are available upon request.
DESCRIPTION

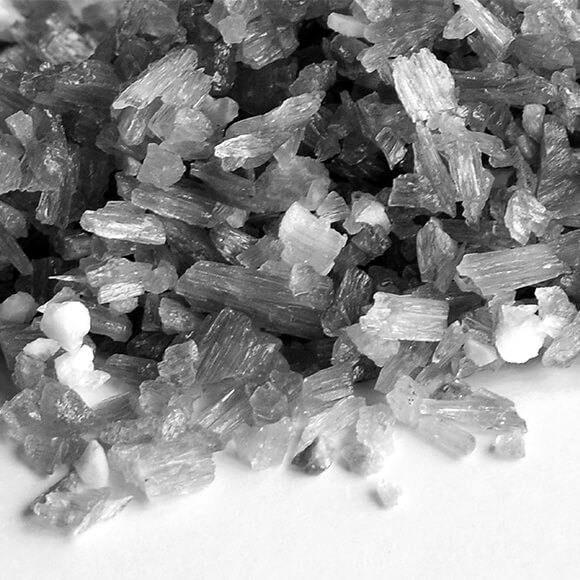

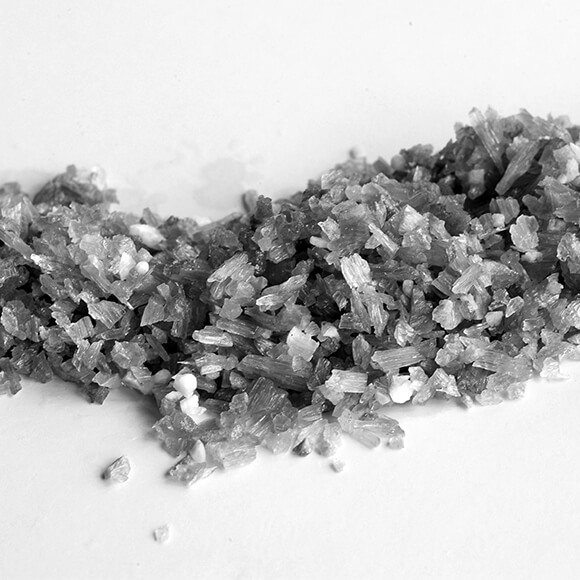

Fused Mullite is made of high purity alumina and silica sand fused in electric arc furnaces at high temperature. The result is needle-like crystal grains form and has great features as following:
Good characteristics:
Low thermal expansion
Good chemical stability
Excellent thermo-mechanical stability
Excellent thermal shock and corrosion resistance
Low porosity
Comparatively lightweight
Oxidation resistance
Resistance to slag attack at high temperatures
DATA SHEET
Physical Properties
Color: White or Grey
Refractoriness: 1830℃
Specific Gravity: 3.15 g/cm³min
3AI2O3.2SiO2 Phase: 95% min
Glassy Phase Content: 5%Max
Linear expansion coefficient (1/°C): -6.0×10-6
Chemical Composition
We offers two types Fused Mullite based on Al2O3 content: FM-70(70% AL), FM-60(60% AL)
|
Types&Grades |
Items |
AI2O3(%) |
SiO2(%) |
Fe2O3(%) |
K2O+Na2O(%) |
CaO+MgO(%) |
|
FM-70
|
Guarantee Value |
70-77% |
22-29% |
0.10% max |
0.40% max |
0.40% max |
|
Typical Value |
74.80% |
24.06% |
0.08%max |
0.16%max |
0.08%max |
|
|
FM-60
|
Guarantee Value |
63-70% |
25-35% |
0.30% max |
0.50%max |
0.60%max |
|
Typical Value |
65.4% |
33.1% |
0.21%max |
0.38%max |
0.40%max |
Noted: Custom chemistry is available upon request.
AVAILABLE GRIT SIZES
We offer Fused Mullite under FEPA standard, ANSI, JIS standard and individual specification is also available upon request.
For Refractories Application:
Macro sizes: 0-0.1 mm, 0-0.5 mm, 0-1 mm, 0.5-1 mm, 1-3mm, 3-5 mm...
Fine powder: 200mesh, -325mesh...
Noted: Custom sizes and shaped are also available upon request.
PACKAGING
Standard Packaging:
- Big bags (1000kgs , 1250kgs, 1350kgs.) with or without pallets;
- 20 or 25kg plastic, or paper bags, with or without pallets.
Custom Packaging is available upon request.
APPLICATION
- Ladles spark plug bodies
- Refractories for glass and steel industries
- High purity Mullite blocks, used in hot wind furnace in steel industry.
- Ceramic kiln and petrochemical industry
- Lining bricks in glass kiln
- Glass contact refractories
- Kiln furniture
- Investment casting shell building and high-end ceramics.
