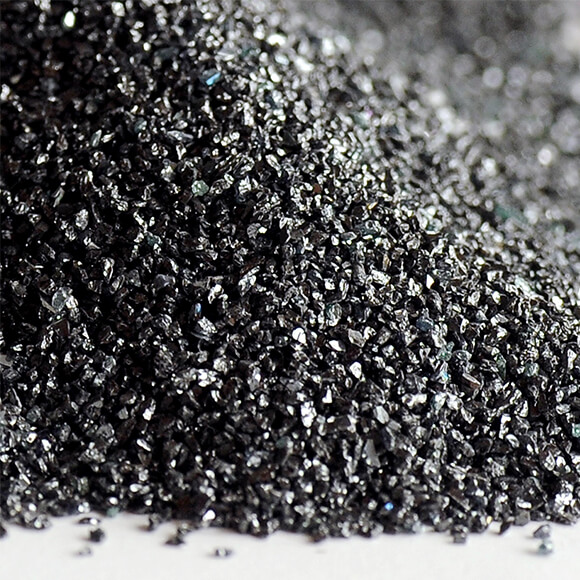

Black Silicon Carbide
Color: Black
Particle Shape: Blocky, sharp edged
Friability: Semi-friable
Melting Point: Dissociates at Approx. 2500°C
True Density: 3.20g/cm³ Min
Hardness: 2550kg/mm, 9.1 Mohs scale
For abrasives: FEPA F12-F1200, FEPA P12-P2500
For refractory: 0-1mm, 1-3mm, 3-5mm…-200mesh, -325mesh…
Grade: SIC-98, SIC-95, SIC-90, SIC-88
*Custom Sizes & Chemistry are available upon request.
DESCRIPTION
Black silicon carbide is mainly made from quartz sand, petroleum coke as the main raw materials and smelted by electric resistance furnace at high temperature. During this high temperature process the crystalline is formed, the grains are extremely hard, sharp, and friable, with many excellent features like as follows:
Low density
High hardness
Good high temperature strength
Oxidation resistance
Excellent thermal shock resistance
High hardness and wear resistance
Excellent chemical resistance
Low thermal expansion and high thermal conductivity
DATA SHEET
Physical Properties:
Crystal Form: Alpha SiC
Particle Shape: Blocky, sharp edged
Color: Black
Friability: Semi-friable
Melting Point: Dissociates at Approx. 2500°C
Bulk Density: 1.20-1.60g/cm³
True Density: 3.20g/cm³ Min
Mohs Hardness: 9.1
Knoop hardness: 2550kg/mm²
Chemical Composition:
|
Type & Grade |
Grit Size |
Chemical Composition (%, by weight) |
||
|
SiC |
F.C |
Fe2O3 |
||
|
C-F |
F12~F90 |
≥98.5 |
≤0.10 |
≤0.15 |
|
F100~F220 |
≥98.0 |
≤0.20 |
≤0.30 |
|
|
F240-F1200 |
≥97.5 |
≤0.30 |
≤0.40 |
|
|
C-P |
P12-P100 |
≥98.5 |
≤0.10 |
≤0.15 |
|
P120~P220 |
≥98.0 |
≤0.20 |
≤0.30 |
|
|
P240-P2500 |
≥97.5 |
≤0.30 |
≤0.40 |
|
|
C-R |
Macro size: 0-1mm,1-3mm ,3-5mm,5-8mm.... Fine Powder: -200mesh, -325mesh |
≥97% |
≤0.30 |
≤0.40 |
|
≥95% |
≤0.60 |
≤0.80 |
||
|
≥90% |
≤2.50 |
≤2.50 |
||
|
≥88% |
≤3.00 |
≤3.00 |
||
AVAILABLE GRIT SIZES
We offer Black SIC in macro and micro grains complying with the current FEPA / JIS / ANSI sieve standards.
For Bonded Abrasives Application:
FEPA F
Macro: F12, F24, F30, F36, F40, F46, F54, F60, F80, F100, F120, F150, F180, F220
Micro: F240, F280, F320, F360, F400, F500, F600, F800, F1000, F1200
For Coated Abrasives Application:
FEPA P
Macro :P24, P30, P36, P40, P50, P60, P80, P100, P120, P150, P180, P220
Micro:P240, P280, P320, P360, P400, P500, P600, P800, P1000, P1200, P1500, P2000, P2500
JIS
JIS240, JIS280, JIS320, JIS360, JIS400, JIS500, JIS600, JIS700, JIS800, JIS1000, JIS1200, JIS1500, JIS2000, JIS2500, JIS3000, JIS4000, JIS6000, JIS8000
For Refractories Application:
Macro sizes : 0-1mm,0.5-1 mm,1-2mm, 1-3mm, 2-3mm, 3-5mm, 5-8mm, 0-10mm,0-25mm...
Fine powder: -200mesh, -325mesh..
Noted :Custom sizes and shaped are also available upon request.
PACKAGING
Standard Packaging:
- Big bags (1000kgs, 1250kgs, 1350kgs.) with or without pallets;
- 20 or 25kg plastic, or paper bags, with or without pallets.
*Custom Packaging is available upon request.
APPLICATION
--Abrasives & surface preparation (Bonded & Coated Abrasives, Grinding , Lapping, Polishing, Sandblasting... )
--Shaped & Unshaped refractories (kiln furniture, bricks and Monolithics for Blast Furnaces, Torpedo Laddle, Aluminum Reduction Cells, Crucibles, Foamglass, electric heating elements, Tiles and Mortars for Incinerators, Wear Resistance Pumps,braking system)
--Glass & precision ceramics
--Metal foundries
--Aerospace,Automotive, National defense& Security
--Power electronics, Semiconductor components
--Metallurgical
--Pavement and Flooring: For slip-resistance.
